EPIA-N800

Description

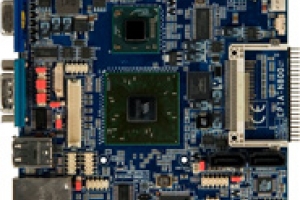

The VIA EPIA-N800 is a compact, low heat, power-efficient Nano-ITX board that brings together for the first time the VIA Nano processor and the VIA VX800 media system processor, making a platform that is tailor-made for the next wave of digitally enhanced compact embedded devices.

Aimed at compact digital display and signage applications, the VIA EPIA-N800 takes advantage of the high performance VIA Nano processor and further leverages the media savvy VIA VX800 MSP to bring HD video playback across multi-display configurations via a 24-bit, dual channel LVDS transmitter. The VIA Chromotion video engine offers excellent hardware accelerated video playback for MPEG-2, WMV9 and VC1.

Measuring only 12cm x 12cm, the VIA EPIA-N800 is features a 1.3+GHz VIA Nano processor, supporting up to 2GB of DDR2 system memory and includes two onboard S-ATA connectors, two USB 2.0, one COM and one Gigabit LAN port. Expansion includes a Mini-PCI slot with an IDE port, additional COM and USB ports and PS/2 support available through pin-headers.

Product Specifications

Key Features

  • Integrated VIA Chrome9™ HC3 DX9 3D/2D graphics with MPEG-2 and WMV9 decoding acceleration
  • Supports DDR2 533/667 SDRAM (SODIMM)
  • Supports two SATA
  • Supports one PCIe Gigabit Ethernet
  • Supports one CF (Compact Flash) Type I
  • Supports one VGA port
  • Supports four USB 2.0 ports (two as pin headers)
  • Onboard LVDS support: one dual channel LVDS panel support
  • Supports HD audio
