Embedded Technologies, Inc.

Tri-M Product

Description

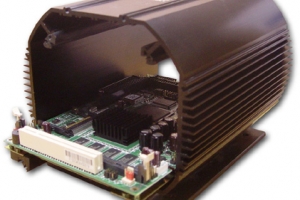

The VT104 VersaTainer is a rugged aluminum enclosure that can be used as either a PC/104, PC/104+ or
EBX enclosure.
The solid one-piece extruded body provides dual internal shock and vibration protection.
Generous internal space is provided for connector and cabling requirements.
For sizes VT8 and larger, an optional EBX mount can be added.
Includes two end caps, the VT-EC00 and the VT-EC01
Corner guides, rubber stops, glue, end cap screws
Protects / enhances the reliability of internal compounds

Product Specifications

1x VersaTainer body 4", 6", 8", 10" or 12"
1x VT-EC00, Solid Endcap
1x VT-EC01, Endcap with 4x DB9 and 2x DB25
1x Anti-Shock mounting pad
4x Corner guides
8x Corner stops
1x Tube CA glue
16x Endcap screws

Click Here For DataSheet
