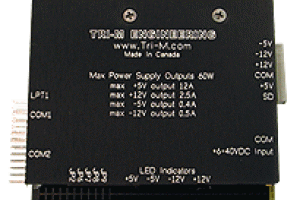

The HE104-DX is a 60 Watt PC/104 DC-DC converter. The HE104-DX is specifically designed for vehicular applications and has heavy-duty transient suppressors (3000W) on both main and secondary inputs) that clamp the input voltage to safe levels, while maintaining normal power supply operation.

The HE104-DX is a state-of-the-art Mosfet based design that provides outstanding line and load regulation with efficiencies up to 95 percent. Organic Semiconductor Capacitors provide filtering that reduces ripple noises below 20mV. The low noise design makes the HE104-DX ideal for use aboard aircraft or military applications or wherever EMI or RFI must be minimized. The HE104-DX has a wide input range of 6 - 40V DC (>6:1). The +5V, +12V, -5V and -12V DC outputs are controlled by a constant frequency architecture regulator that provides excellent line and load transient response. The HE104-DX is also available in a low cost, +5V and +12V output only configuration, the HE104-DXL.

The HE104-DX is a compact design measuring 3.55" x 3.775" x 0.9" and has an operating temperature of -40° to +85°C. The HE104-DX is available from stock and is now RoHS compliant.

Product Specifications


  • 60 Watt power supply
  • 6V to 40V DC input range
  • +5V, +12V, -5V and -12V DC output
  • High efficiency up to 95%
  • PC/104 compliant
  • Extended temperature: -40° to +85°C
  • Options:
    Super I/O chip includes two asynchronous serial ports and one standard parallel port asynchronous serial ports and one standard parallel port.
