SECOMEXP-ION

Description

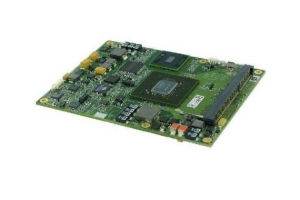

COM-Express™ Module with Intel® Atom® CPU and NVIDIA® ION Chipset with Dual Channel Memory

Product Specifications

  • COM EXPRESS TYPE II, Basic
  •  CPU: Intel® Atom® N270 1,6GHz
  • Chipset: NVIDIA® MMP9 Embedded ION® Chipset
  • Memory: up to 4GB of 1066MHz DDR3, on dual SO-DIMM sockets supporting Dual Channel
  • Graphics: integrated NVIDIA® GeForce 9400 Graphic
                    Controller, with 16 graphic/computational cores
  • LVDS:    Single/Dual Channel 18/24 Bit LVDS Transmitter
  • Resolutions:    Up to 1600 x 1200 on LVDS
                                Up to 1920 x 1440 on CRT interface
  • PEG    PCI Express Graphics x16 interface
  • Mass Storage    1 x P-ATA channel
                              4 x S-ATA channels
  • USB                   8x USB 2.0 ports
  • PCI-e ports        3x PCI Express x1 ports
  • ETHERNET         Gigabit Ethernet port
  • Audio                HD Audio Interface
  • Interface Bus    PCI Bus
                              LPC BUS for legacy peripherals
                              SM Bus
                              I2C Bus
  • Power supply    +12VDC and +5VSB for ATX mode
  • Power consumption: 11W ACPI OS Idle status;
                                      17W average, 20W peak during stress test with 4GB DDR3 memory
  • Operating temperature: -25°C ÷ + 70°Cwith finned heatsink
  • Dimensions    125x95 mm (COM Express Basic)
