Embedded Technologies, Inc.

SECOMEXP-945/N270

Description

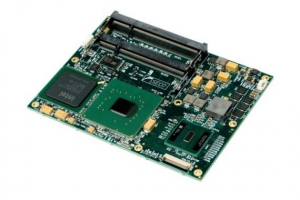

COM Express™ with Intel® Atom® N270, Intel® 945GME+ICH7-M DH chipset and Dual Channel Memory

Product Specifications

  • COM EXPRESS™ Board, Type II, Basic
  • CPU: Intel® Atom® N270 @ 1.6GHz with2.5W TDP
  • Chipset: Intel® 945GME + ICH7-M DH Express
  • DRAM: up to 4GB DDR2 DRAM, on two SO-DIMM sockets supporting Dual Channel
  • Graphics: Intel® Graphics Media Accelerator 950
    with dual independent display support
  • resolution up to 2048x1536 on CRT, up to 1600x1200 on LVDS
  • 8 x USB 2.0 ports
  • 2 Serial ATA ports
  • Gigabit Ethernet interface
  • Up to 5 PCI Express x1 port
  • Audio interface configurable as AC'97 or HD Audio
  • Power consumption: 11W ACPI OS Idle status;
                                      14W average, 22W peak during stress test with 4GB DDR2 memory
  • Operating temperature: -40°C ÷ + 85°C
