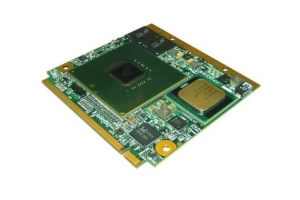

QUADMO747-XL

Description

New board on Qseven™ form factor based on Intel® Atom™ Platform

Product Specifications

  • CPU: Intel® Atom™ Z5xxPT series 1.1 GHz and 1,33 GHz
  • Chipset: Intel® System Controller Hub US15WPT (extended temperature)
  • DRAM: Up to 1 GB DDR2 400/533 MHz
  • CACHE: 512 KB L2
  • Graphic Interface: Intel® GMA 500
  • LVDS: Single Channel at 18 or 24 bit
  • PCI Express: two port x1
  • USB: 8x USB 2.0 ports
  • Ethernet: 1x GBE
  • SDIO: 1 x 4-bit interface
  • On board flash disk up to 8GB
  • SATA: Single Channel
  • SDVO
  • HDA (High Definition Audio)
  • I2C Bus
  • LPC (Low Pin Count Bus)
  • Power Management Signals
  • Thermal Cooling Interface Defined
  • Extended temperature range, -25°C ÷ +85°C
  • Power Supply Voltage 5V +/- 5%
  • Dimensions: 70 x 70 mm (2.7559" x 2.7559")
