VDX-6354

Description

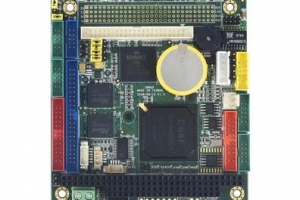

Vortex86DX PC/104 CPU Module with 256MB DDR2

Product Specifications
  • SoC - DM&P SoC CPU Vortex86DX- 800MHz
    Real Time Clock with Lithium Battery Backup
  • Cache - L1:16K I-Cache, 16K D-Cache, L2 Cache 128KB
  • Bus - PC/104 standard compliant
    PC-104, PC/104+ (Optional)
  • BIOS - AMI BIOS
    System - 256MB DDR2 Onboard
    Watchdog - Software programmable from 30.5 ;sec. To 512 sec. x 2
    sets (Watchdog 1 fully compatible with M6117D)
  • VGA - XGI Volari Z9s Chipset
    VGA and TFT Flat Panel Interface Support
    Onboard 32MB VGA Memory, support resolution up to
    1280 x 1024, 16M colors
  • LAN - Integrated 10/100Mbps Ethernet
  • Audio - CM119 USB Audio controller
    Flash Disk Support - Onboard 4MB SPI Flash Disk
    MSTI EmbedDisk Module (16MB and above)
  • I/O Interface - Enhanced IDE port (UltraDMA-100/66/33) x1
    RS-232 port x3
    RS-232/422/485 port x1
    USB port (Ver2.0) x2
    Parallel port x1
    16-bit GPIO port x1
    10/100Mbps Ethernet port x1
