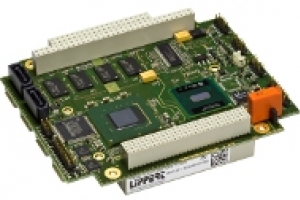

Cool RoadRunner-945GSE
Description
The Cool RoadRunner-945GSE (formerly named "Cool RoadRunner-Atom") delivers high computing performance while consuming only little power. Its Atom processor was created with todays most advanced semiconductor technology and is especially suitable for low-power embedded devices.
The Cool RoadRunner-945GSE is available in the standard temperature range of -20°C…+60°C. Optionally, it can be ordered for the extended range of -40°C…+85°C. There are standard cooling solutions available for both temperature ranges. Check the related application note for their possibilities. A suitable heat spreader is already included.
Product Specifications
- Intel® Atom™ N270 Processor
- Up to 2 Gbyte soldered DDR2-RAM
- SXGA: 2048 x 1536 pixel
- CRT and LVDS, with backlight
- Gigabit Ethernet
- 8 x USB 2.0
- 2 x RS232/RS422/RS485
- 2 GB Solid State Disk (SSD)
- HD audio
- 2 x SATA
- Power consumption: 12.5 watts
- Passive cooling possible
- Optionally extended temperature range
-40 °C...+85 °C
