EPIC
Description

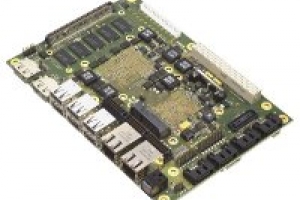

An Intel® Core™ i7 Processor from Intel’s Embedded Roadmap and a matching Mobile Intel QM57 Express Chipset powers this high-performance single board computer. The processor supports Hyper Threading and features integrated graphics. The chipset not only handles DisplayPort and LVDS interfaces but also often required standard interfaces.
Processor and chipset are both mounted on the PCB’s bottom side and can be attached to a suitable cooling solution with a heat spreader. This arrangement allows mounting of EPIC Express peripheral cards on the top and gives mechanical stability. In fact, it is robust enough to conform to the stringent VITA47-2005 V3 and OS2 requirements.
The Hurricane-QM57 supports up to 4 GB soldered down DDR3 ECC memory, which can be expanded using a new developed Rugged SODIMM memory module (RSOMM) to a total of 4 GB.
The embedded PC board is specified for the industrial temperature range of -20°C to +60°C, and optionally available for the extended temperature range -40°C to +85°C.
Product Specifications
- Intel Core i7
- 4 GB soldered ECC RAM
- 4 GB on optional RSOMM module
- Graphics controller integrated
- 2 DisplayPort
- LVDS: Dual channel, 8/24 bits
- Sound: Azalia, w/ optical SPDIF
- MiniPCI Express slot
- 2x Gigabit LAN
- 10 x USB 2.0
- 4 SATA w/ RAID support
- PCI Express bus
- PCI bus
- LPC, SMC, and SPI buses
- Power consumption: t.b.d.
- Extended temperature range -40°C…+85°C
- ANSI/VITA 47-2005 V3 & OS2 compliant
- GoldCap for backup
- Flash BIOS
