Core Express
Description

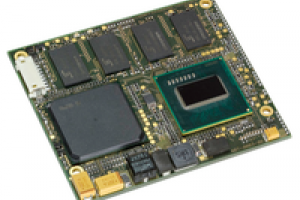

Especially designed for small, battery-powered computer systems, the CoreExpress-ECO2 features a powerful Intel Atom E6xxT processor (aka "Tunnelcreek"). The Computer on Module forms the kernel of a customized system, where the specialized carrier board handles all application specific interfaces. The module sports a CAN bus interface.LEMT condition management is available for condition monitoring.
Product Specifications
- Intel® Atom™ E6xxT Series Processor with low Thermal Design Power (TDP) specifications:
E620T, 600MHz, TDP = 2.7 Watt
E640T, 1.0GHz, TDP = 3.3 Watt
E660T, 1.3GHz, TDP = 3.3 Watt
E680T, 1.6GHz, TDP = 3.9 Watt - Up to 2 Gbyte DDR2 RAM
- SDVO: 1920 x 1280 pixel
- LVDS: 1280 x 768 pixel
- LAN: RGMII interface
- 7 x USB 2.0 (1 slave)
- CAN 2.0B interface
- Passive cooling possible
- Supervision LEDs
- High Definition Audio (external codec)
- LEMT
- SDIO
- 2 SATA ports
- Supports Windows, Linux
