Embedded Technologies, Inc.

Windows 7/Windows CE NDIS6.2 Miniport Wi-Fi Driver

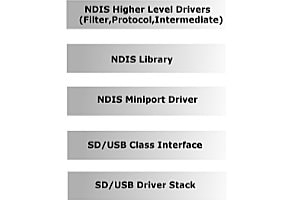

In Windows, drivers for network adapters are implemented as NDIS Miniport drivers. This driver communicates with its NIC and with higher-level drivers (filter drivers, intermediate drivers and protocol drivers) through the NDIS library. It also exports a set of Miniport handler functions, which are used by NDIS layer to communicate with Miniport driver.

Product Specifications
  • Compliant to 802.11a/b/g/n
  • Host Interface :  SDIO 4 Bit
  • Data Rate: Up to 65 Mbps
  • Frequency Bands: 2.4 GHz and 5 GHz
  • Native 802.11 Miniport Driver
  • Supports NDIS Version 6.20
  • Support Extensible Station (ExtSTA) Operation Mode
  • Supports Open System Authentication & WPA/WPA2 Authentication Algorithms
  • Supports WEP, TKIP & CCMP Cipher Algorithms
  • Supports Wireless LAN Auto-configuration Service
  • Supports 802.11 to 802.3 and 802.3 to 802.11 frame emulation


  • NDIS 6.20 is a new version of NDIS with lot of enhancements from previous versions
  • Implemented  all NDIS 6.20 Object Identifiers (OID’s) and status indications to support Extensible Station (ExtSTA) mode
  • Implemented 802.11 to 802.3 and 802.3 to 802.11 frame conversion. This helped our customers to re-use the existing MAC in Windows 7 (NDIS 6.20) environment.
  • Driver designed in a modular way with clear separation between Hardware Abstraction Layer(HAL), OS dependent layer(OSD), and OS independent layer(OSI)
