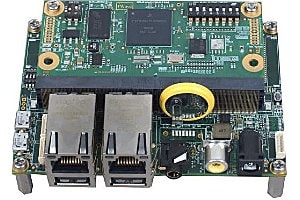

Vybrid Pico ITX SBC


iW-RainboW-G16S, Vybrid Pico ITX Single Board Computer based on Freescale's Vybrid VF6xx/VF5xx family solution combining ARM Cortex-A5 and Cortex-M4 cores often eliminates the need for an external MCU for real time control applications. Vybrid devices also provide a powerful combination of on-chip encryption; secure boot, anti-tamper and anti-clone capabilities to secure sensitive or critical infrastructure applications such as smart grid or industrial control. The Vybrid Pico ITX SBC is packed with 256MB on board RAM & 256MB NAND Flash and rich set of peripherals powered with Linux 3.0.15 OS.

Product Specifications
  • Vybrid VF6xx CPU
  • ARM Cortex A5 & ARM Cortex M4
  • 256MB DDR3 RAM
  • 256MB NAND Flash (default boot device)
  • 10/100 Ethernet PHY
  • OS: Linux 3.0.15
  • RS232 Debug Console - 1 Port
  • Standard SD - 1 Port
  • USB 2.0 Host x 1 port
  • USB 2.0 OTG as a device - 1 Port
  • 10/100 Ethernet - 2 Ports
  • I2S Audio Codec-Audio Jack
  • I2C Resistive touch controller
  • RGB Display interface
  • REACH & RoHS Compliant


  • Dual Heterogeneous cores: ARM Cortex A5 @500 MHz & ARM Cortex M4 @167 MHz
  • Asymmetric Multi Processing
  • Ultra low power consumption
  • Security support & Mixed signal capability
