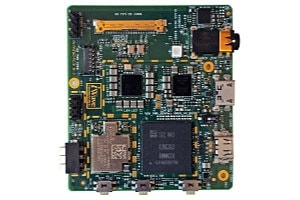

Snapdragon 820 SBC

Description

The Snapdragon 820 SBC powered with Qualcomm’s APQ8096 SOC is cost effective single board solution offering 64-bit Quad Kryo CPU, H.265 hardware decode & encode, Adreno 530 GPU with on board 802.11ac Wi-Fi, BT4.1 and the GPS. The SBC is ideally suitable for high end embedded computing applications which requires high processing power, graphics and multimedia capabilities.

Product Specifications
  • SOC: Qualcomm APQ8096
    • 64-bit Quad Kryo core
    • Adreno 530 3D Graphics @624MHz
    • H.265 4K60 decode, 4K30 encode
    • Qualcomm Hexagon DSP

  • Power Management:
    • PM8996 PMIC
    • PMI8996 Charger

  • Memory:
    • 3GB LPDDR4 (Expandable to 6GB)
    • 32GB eMMC (Expandable to 128GB)
    • Micro SD Slot

  • Communication:
    • 802.11ac Wi-Fi + BT module
    • WGR7640 GPS
    • USB3.0 Type-C Connector (Optional)
    • USB2.0 Micro AB Connector

  • Audio/Video Features:
    • WCD9335 Audio Codec
    • Audio In/Out Jack
    • Micro HDMI Connector

  • 30P Connector:
    • MIPI CSI x 4 lanes
    • MIPI DSI x 2 lanes
    • I2C x 3 Ports

  • Miscellaneous Features:
    • Tactile Switch x  3
    • Console debug header

  • Power Supply:
    • 3.7V Li-ion Battery connector
    • 5V Input through USB Micro AB

  • Temperature support:
    • 0°C to +70°C

  • Form Factor:
    • 56mm x 50mm

  • OS Support:
    • Android Marshmallow

  • REACH & RoHS Compliant

Highlights

  • 64-bit Quad Kryo Snapdragon 820 CPU :
    • Dual Kryo cores Gold cluster @ (2.15 GHz)
    • Dual Kryo cores Silver cluster @ (1.6 GHz)

  • Hexagon 680 DSP @ 825MHz
  • 14-bit Qualcomm Spectra ISP (28MP@30fps)
  • H.265 video playback @4K60 and capture @4K30
  • Adreno 530 GPU
  • 802.11ac Wi-Fi & BT 4.1
  • Qualcomm IZat Gen8C GPS
