Single Board Computer i.MX6 Pico ITX

Description

2 weeks Lead Time

Single Board Computer (SBC) is a complete computer built on a single circuit board. i.MX6 Pico ITX Single Board Computer  is the Industry's latest SBC around Freescale i.MX6 that includes Quad, Dual, DualLite and Solo core families based on the ARM® Cortex™-A9 architecture which is iWave’s 4th i.MX6 based designs.

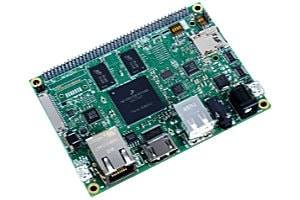

Single Board Computer, iW-RainboW-G15S
Measuring just 10cm x 7.2cm, iWave’s iMX6 Single Board Computer is a highly integrated platform for increased performance in “Intelligent Industrial Control Systems, Industrial Human Machine Interface, Ultra-Portable Devices, Home Energy Management Systems and Portable Medical Devices”.

Product Specifications
  • CPU: Freescale iMX6 Quad/Dual/Dual Lite/Solo @1GHz/800MHz ARM-Cortex-A9

  • PMIC: Freescale MMPF0100

  • RAM:
    • 1GB DDR3 for Q/D/DL SBC (Expandable up to 4GB*)
    • 512MB DDR3 for Solo SBC (Expandable up to 2GB*)

  • Storage:
    • SPI Flash 2MB (Expandable*)
    • 4GB eMMC Flash (Expandable*)
    • On-board Micro SD Slot
    • Standard SD/SDIO Slot
    • Optional SATA 7 pin Connector*

  • Communication Interfaces:
    • 10/100/1000 Mbps Ethernet
    • Half mini PCIe Card Connector
    • Dual USB  Host Connector
    • Micro USB OTG connector
    • CAN Transceiver-1 Port

  • Audio & Video interfaces:
    • AC'97 Audio Codec with Audio Out Jack & Audio In Header
    • HDMI Port
    • LVDS connector with Backlight Support [LVDS0]
    • 4 wire Resistive Touch Controller
    • 8bit CMOS Camera Connector [CSI1]
    • 2 Lanes MIPI Camera Connector

  • Debug  & Status Indication Support:
    • Micro USB Debug Port
    • JTAG Header
    • 4 Pos User  Dip Switch & Status LEDs

  • Expansion Header-84 pin:
    • MIPI DSI
    • SPI Interface-1No
    • CSI0 Camera interface
    • CAN2 Interface
    • UART - 3 Nos
    • I2C- 3 Nos
    • GPIOs
    • LVDS1 interface
    • Optional MLB Interface*

  • Miscellaneous: RTC Controller*

  • Operating Temperature:

    • -20°C to +85°C

  • Power Input:
    • 5V, 2A

  • Form Factor:
    • Pico-ITX(100mmx72mm)

  • Operating Systems:
    • Linux 3.10.17
    • Android 4.3 Jelly Bean
    • Windows Embedded Compact7

  • REACH & RoHS Compliant


Optional features are not supported by default

Note: For exact orderable part number and its associated deliverables, please refer to the Deliverables section of this page.

Highlights

  • ARM Cortex A9 @1GHz Quad/Dual/Dual Lite/Solo core
  • 100mm x 72mm Pico-ITX form factor Single Board Computer
  • HD 1080p encode and decode
  • 3D video playback in high definition
