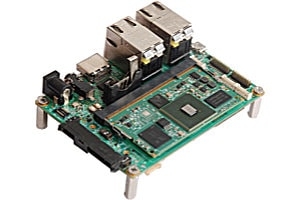

RZ/G1E Single Board Computer

Description

RZ/G1E Single Board Computer is based on Renesas' power efficient Dual core ARM Cortex A7 CPU cores operating @1GHz speed.

The board can be used for quick prototyping of various applications targeted by the RZ/G1E processor. With the 100mm x 72 mm Pico ITX size, the kit is highly packed with all the necessary on-board connectors to validate the RZ/G1E CPU features.

Product Specifications

RZ/G1E SODIMM SOM:

  • Renesas’ RZ/G1E CPU @ 1GHz
  • SGX540 Graphics core @ 260MHz
  • 512MB DDR3
  • 4GB eMMC Flash
  • 10/100/1000 Ethernet PHY
  • Micro SD Slot


SODIMM Carrier board:

  • Gigabit Ethernet– 1 Port
  • USB 2.0 host – 2 Ports
  • USB2.0 device – 1 Port
  • SD Slot – 1 Port
  • 8-bit CSI camera – 1 Port
  • Audio Codec, In/Out Jack
  • RGB display – 1 Port
  • Resistive touch controller
  • Data UART – 1 Port
  • CAN PHY – 1 Port
  • Serial console on USB port
  • IO expansion headers
  • JTAG header


HDMI Daughter Board:

  • ADV7511 HDMI Transmitter
  • HDMI Output - 1 Port
  • CAN PHY - 2nd Port
  • RS232 - 3 Ports


Power Supply:

  • 5V@2A DC Input


Operating Temperature:

  • 0ºC to 60ºC


OS Support:

  • Linux 3.10.31


Form Factor:

  • 100mm x 72mm


REACH & RoHS Compliant

Highlights

  • Dual Core ARM Cortex-A7 @ 1GHz
  • Hardware HD encode & decode
  • Built in SGX540 3D Graphic acceleration
  • Ultra-compact form size 100mm x 72mm
  • Industrial Linux with 10-year support
