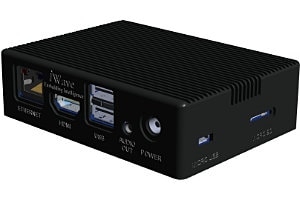

i.MX6 Based Digital Signage Solution

Description

iWave Systems launched Industry's latest Freescale Semiconductor’s i.MX 6 processor based Digital signage Solution. Digital signage enables users to display their messages more dynamically and effectively. Dynamic images are more appealing and can convey considerably more information than static ones.

iWave’s new Digital signage Solution integrates all standard interfaces into a single board with ultra-compact yet highly integrated platform that can be utilized across multiple Digital signage like Meeting Room Signage, Digital Menu Boards, e-Posters, Network Media Players and other Commercial Displays.

Product Specifications
  • CPU:
    • i.MX6 Dual Lite/Solo, (Quad /Dual compatible)

  • RAM:
    • 512MB DDR3 (Expandable up to 2GB)

  • Storage:
    • On-board Micro SD Slot
    • Standard SD/SDIO Slot
    • Optional eMMC  Support*
    • Optional SATA 7pin Connector +

  • Communication Interfaces:
    • 10/100/1000Mbps Ethernet
    • Half mini PCIe card connector
    • Dual USB  Host Connector
    • Micro USB OTG connector
    • CAN Header

  • Audio & Video interface:
    • AC97 Audio Codec with Audio Out Jack & Audio In Header
    • HDMI  Port
    • LVDS connector  with Backlight & Resistive Touch connector support
    • 8bit CMOS Camera Connector
    • 2 Lanes MIPI Camera connector

  • Debug  & Status Indication Support:
    • Micro USB Debug Port
    • Optional JTAG Header*
    • 4 Pos User  Dip Switch & status LEDs

  • Expansion Header-84 pin:
    • MIPI DSI
    • SPI Interface-1No
    • CSI0 Camera interface
    • CAN2 Interface
    • UART - 3 Nos
    • I2C- 3 Nos
    • GPIOs
    • Optional LVDS1 interface+
    • Optional MLB Interface+

  • Operating Temperature:
    • -20°C to +85°C

  • Power Input:
    • 5V, 2A

  • Dimensions:
    • 105mmx77mmx30mm

  • Operating Systems:
    • Linux 3.0.35
    • Android*
    • Windows Embedded Compact7*

  • REACH & RoHS Compliant

*Optional features not supported by default
+Supported by the iMX6 Quad/Dual based SBC

Highlights

  • ARM Cortex A9@ 1GHz Dual Lite/Solo core
  • 10cm x 7.2cm Pico-ITX form factor Single Board Computer
  • HD 1080p encode and decode
  • 3D video playback in high definition
  • Includes HDMI v1.4, MIPI and LVDS display ports, MIPI camera, Gigabit Ethernet, multiple USB 2.0 and PCI Express
  • Comprehensive security features include cryptographic accelerators, high-assurance boot and tamper protection
