Video Encoder Interface

Description

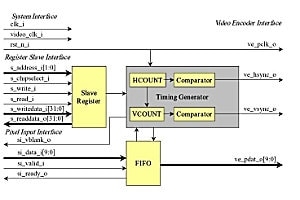

Video Encoder Interface core accepts unformatted video data (without blanking/synchronization information) in 10-bit Y’CbCr 4:2:2 format and outputs 10-bit synchronized video in conformance with BT.601/656 recommendation to a video encoder.

Product Specifications
  • Parallel interface support for 10-bit
  • Programmable polarity of frame clock & line clock
  • YCbCr 4:2:2 data
  • Supports interlace type scan
  • Programmable interface timing (front and back porch)

Highlights

  • Core supports both PAL and NTSC resolution
  • BT656 standard interface
