Video Decoder Interface

Description

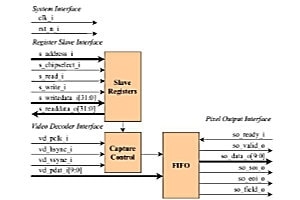

Video Decoder Interface core accepts BT601/656 video frames (digitized NTSC/PAL) in 10-bit Y'CbCr 4:2:2 format from a video decoder of an analog camera and outputs 16-bit video data in the same format in a continuous stream without blanking and synchronization information.

Product Specifications
  • Supports BT601 interface
  • Supports BT656 interface
  • Supports both NTSC & PAL resolution
  • Programmable polarity of frame clock & line clock

Highlights

  • Core can be used to interface to Video Decoders such as ADV7180
