SD / SDIO / MMC Host Controller

Description

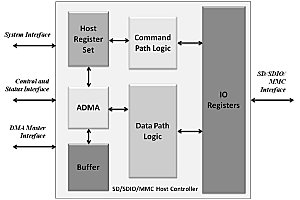

iW-SD Controller interfaces SD / MMC / SDIO card to any processor with a generic interface. The interface towards the SD card is realized by the SD protocol implemented in the controller.

Product Specifications
  • Compliant with SD Host Controller Standard Specification Version 2.0
  • Compliant with SD Physical Layer Specification Version 2.0
  • Compliant with SDIO Specification 2.0
  • Compliant with eMMC Specification Version 4.41
  • Supports 1-bit,4-bit SD/eMMC modes and 8-bit eMMC modes
  • Supports SD Card Detection input pin
  • Supports SD Card Write Protection input pin
  • Supports programmable clock frequency generation to the SD/eMMC card
  • Supports Interrupt and ADMA2 transfer mode of operation
  • Individual 2Kbyte data buffer for read and write
  • Cyclic Redundancy Check (CRC) for command and data
  • Supports timeout monitoring for response, data, CRC token & busy
  • Supports a maximum block length of 2K-byte
  • Supports both single block and multi block data transfer.
  • Supports power ON/OFF control to SD/eMMC card

Highlights

  • Compliant with SDIO specification version 2.0, SD specification version 2.0, MMC specification version 4.41
  • Controller provides simple slave interface for control & status access and master interface for DMA data transfer
