SD Memory Slave Controller

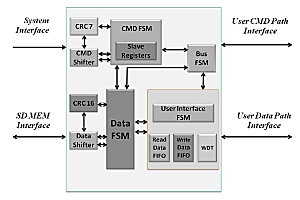

Description

The SD Memory Slave controller is designed to reside within SD Memory card. This slave controller provides simple and general-purpose 8-bit interface to user application. This controller handles the SD bus protocol on the card interface side and forwards only the data transfer requests to user logic interface.

Product Specifications
  • Compliant with SD Physical Specification Version 2.00
  • Supports 1-bit and 4-bit SD Mode
  • Supports Standard and High Capacity operations
  • Supports Default and High Speed Modes of operation
  • Supports all mandatory slave registers set
  • CID Register fields are configurable through header file
  • Supports only Standard command set
  • Supports all mandatory SD Command Classes
  • CRC7 checking/generation for Command/Response
  • CRC16 checking/generation for Data transfer
  • Support Maximum block length of 512 bytes
  • Supports Single and Multiple block read and write data transfer
  • Supports Partial and Misalign Block length option
  • SD Memory only implementation
  • IP provides simple and general-purpose 8-bit interface to user application
  • Combo card features are not supported
  • SPI Mode is not supported

Highlights

  • Core handles SD bus protocol on the card interface and provides simplified interface to user logic
  • Core handle all the housekeeping tasks by itself without user logic intervention
  • Supports both the standard and High capacity operation
