NAND Flash Controller

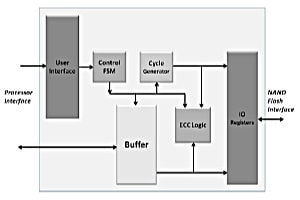

NAND Host Controller provides an easy interface to access NAND Flash Memory devices. It handles all set of commands, address and data sequence.

Product Specifications
  • Simple streaming interface towards user logic for data read and write

  • Commands supported towards NAND Flash Memory:

    • Read
    • Read for Copy Back
    • Reset
    • Page Program,
    • Copy-Back Program,
    • Block Erase,
    • Random Data Input,
    • Random Data Output and Read Status
  • ECC Logic: Hamming code used to correct 1-bit error and detect 2-bit errors
  • Commands supported from user: Block Erase, Read, Program and Copy-Back Program
  • Supports timeout mechanism for all NAND commands and operations
  • 2K-byte buffer for write data
  • 2K-byte buffer for read data
  • Identify factory defined invalid blocks


  • Core is compliant with Open ONFI 1.0 standard
  • Controller supports rich set of NAND commands
