LCD/HDMI Video Output Interface

Description

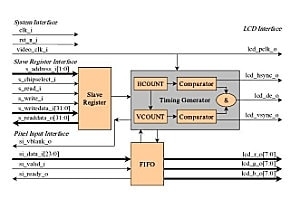

LCD/HDMI Video output Interface supports various display modes and programmable display sizes. This core formats the incoming active video input into clocked video output by generating horizontal and vertical synchronization information and inserting horizontal and vertical blanking.

Product Specifications
  • Display modes
    • RGB 4:4:4, RGB 5:5:5, RGB 5:6:5, RGB 6:6:6, RGB 8:8:8

  • Supports programmable display size
  • Supports progressive type of displays
  • Programmable pixel clock frequency
  • Programmable polarity of output enable, frameclock & line clock

Highlights

  • Core supports multiple display modes
  • Core offers simple synchronous interface to stream the active video packets
