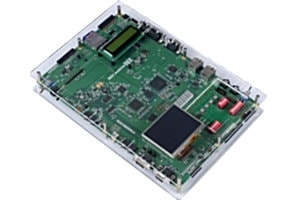

Unified Technology Learning Platform

Description

UTLP (Unified Technology Learning Platform) is an ardent facilitator for aiding engineers gain hand-on, learn and understand complex and advance technologies simply. Besides, UTLP also concentrates on making students and freshmen industry ready as it gives them the experience of working in real time. Eventually, UTLP embraces modern technologies to bridge the gap between academia and industry. It increases individual learning towards subjects and supports and motivates students towards building and integrating concepts keeping in mind organizational practices. It also promotes and expedites Entrepreneurship and Research within the country.

Product Specifications
  • TI OMAP 3530 SOC
  • ARM Cortex A8 600MHz CPU
  • DM64X+ 430MHz DSP
  • Xilinx Spartan-6 LX25T FPGA
  • 128MB CPU RAM –mDDR
  • 64MB FPGA RAM-DDR2
  • 128MB NAND FLASH
  • PowerVRSGX Graphics
  • Video OUT-VGA, LCD-local/external
  • AV Support
  • TV Out
  • Video IN-Camera
  • Audio in, audio out, stereo out
  • Boot Loader
  • Xloader, Uboot
  • Operating Systems
  • Linux X11 (Graphics)
  • Development Environment
  • Eclipse IDE & XILINX ISE Web Pack
  • Peripherals
  • 3.5” TFT LCD with Touch screen
  • Seven Segments LED
  • Dual line character LCD
  • ADC, DAC & Flexible IOs
  • External-Bluetooth, WiFi, GPS*
  • LED, DIP switches, Onboard RTC
  • Connectivity
  • UART, I2C, McSPI, McBSP
  • USB 2.0 OTG
  • Ethernet (10/100Mbps)
  • JTAG support for CPU and FPGA
  • API Support for debug
  • Low level API for peripherals
  • Stub Application & ULK Control panel

Highlights

  • Training to Faculty on enhanced curriculum, equipment and course delivery
  • Take-Home Self-practice pedagogical approach
  • Entire Design and Source code available for Customization
  • Usage and support from Open Source Community
