Vybrid uMXM Development Platform

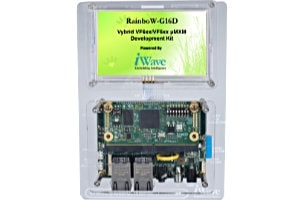

iW-RainboW-G16D, Vybrid µMXM Development Platform incorporates Vybrid VF6xx SOM and Pico-ITX form factor carrier card. Freescale's Vybrid VF6xx/VF5xx family solution combining ARM Cortex-A5 and Cortex-M4 cores often eliminates the need for an external MCU for real time control applications. Vybrid devices also provide a powerful combination of on-chip encryption; secure boot, anti-tamper and anti-clone capabilities to secure sensitive or critical infrastructure applications such as smart grid or industrial control. The Vybrid µMXM Development kit is packed with 256MB on board RAM & 256MB NAND Flash and powered with Linux 3.0.15 OS. The module brings all the Vybrid peripheral interfaces to a 314-pin MXM edge connector which can be validated on the carrier board.

Product Specifications
  • Vybrid µMXM SOM:
    • Vybrid VF6xx CPU
    • ARM Cortex A5 & ARM Cortex M4
    • 256MB DDR3 RAM
    • 256MB NAND Flash (default boot device)
    • 10/100 Ethernet PHY
    • OS: Linux 3.0.15

  • µMXM Carrier Board:
    • RS232 Debug Console - 1 Port
    • Standard SD - 1 Port
    • USB 2.0 Host x 1 port
    • USB 2.0 OTG as a device - 1 Port
    • 10/100 Ethernet - 2 Ports
    • I2S Audio Codec-Audio Jack
    • I2C Resistive touch controller
    • RGB Display interface
    • REACH & RoHS Compliant


  • Dual Heterogeneous cores: ARM Cortex A5 @500 MHz & ARM Cortex M4 @167 MHz
  • Asymmetric Multi Processing
  • Ultra low power consumption
  • Security support & Mixed signal capability
