RZ/G1M,G1N Qseven Development Platform

Description

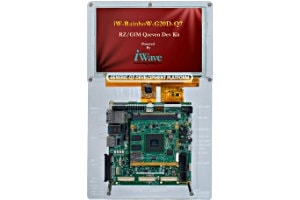

iWave's RZ/G1M,G1N development board incorporates RZ/G1M Qseven SOM Which is based on Renesas high performance RZ/G1M,G1N Dual ARM Cortex A15 MPU and the carrier board with optional 7” capacitive display kit. The development board can be used for quick prototyping of various applications targeted by the RZ/G1M,G1N processor. With the 120mm x120 mm Nano ITX size, the kit is highly packed with all the necessary on-board connectors to validate the RZ/G1M,G1N MPU features.

Product Specifications
  • RZ/G1M,G1N Qseven SOM:
    • RZ/G1M,G1N ARM Cortex A15 MPU @ 1.5GHz
    • 1GB DDR3RAM
    • 2MB SPI NOR Flash
    • 4GB eMMC Flash
    • 10/100/1000 Ethernet PHY

  • Qseven Carrier Board:
    • SATA – 1 Port1
    • PCIe – 1 Port1
    • Gigabit Ethernet – 1 Port
    • LVDS display – 1 Port
    • USB 3.0 Host – 1 Port
    • USB 2.0 Host – 2 Ports2
    • USB 2.0 OTG – 1 Port2
    • SD Slot – 1 Port
    • 7” Display with CAP touch3
    • Audio Codec, In/Out Jack
    • Serial Console on USB port
    • Data UART – 1 Port
    • CAN PHY – 1 Port
    • IO expansion connectors

  • Camera daughter Board4:
    • 16-Bit Camera– 1 Port5
    • 8-Bit Camera – 1 Port
    • Analog Video input – 1 Port
    • 24bpp RGB display – 1 Port5
  • Power Supply:
    • 12V, 2A DC Input

  • Temperature Supported:

    • 0°C to +60°C

  • OS Support:

    • Linux 3.10.31
  • Form Factor:

    • Nano ITX Size: 120mm x 120mm

  • REACH & RoHS Compliant

Note1: SATA and PCIe are multiplexed in the RZ/G1M,G1N MPU. Only one can be supported at a time. SATA is supported in the default configuration

Note2: Either USB2.0 Host 2 ports (or) USB2.0 Device can be supported at a time. USB2.0 Host 2 ports is supported in the default configuration

Note3: 7” Capacitive Display kit is optional feature

Note4: Camera daughter board is optional feature

Note5: 16-Bit Camera and 24bpp RGB interfaces are multiplexed. 16-Bit Camera port is supported by default

Highlights

  • High performance Dual Cortex-A15 MPU @ 1.5GHz
  • SGX544MP2 3D Graphic core @ 520MHz
  • Multi-channel Video input, HD Encode & Decode
  • USB3.0,Gigabit Ethernet, PCIe, SATA, LVDS high speed interfaces
  • 7” display Kit with capacitive touch screen
  • Industrial Linux with 10-year support
