i.MX6ULL SODIMM Development Platform

Description

Lead Time 1 Week

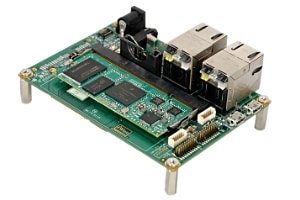

iWave's i.MX6ULL SODIMM Development Board incorporates i.MX6ULL SODIMM SOM which is based on NXP/Freescale's power efficient iMX6ULL ARM Cortex A7 processor and the carrier board with optional 4.3" resistive display kit. The development board can be used for quick prototyping of various applications targeted by the i.MX6ULL processor. With the 100mmx72mm Pico ITX size, the kit is highly packed with all the necessary on-board connectors to validate the iMX6ULL CPU features.

Product Specifications
  • CPU:

    • NXP/Freescale’s i.MX6ULL up to 900MHz ARM Cortex A7

  • PMIC:

    • NXP/Freescale’s PF3001

  • Memory:

    • 256MB DDR3
    • 256MB NAND Flash

  • IO Ports Support:

    • USB 2.0 Host - 2 Ports
    • USB 2.0 device - 1 Port
    • 10/100 Ethernet - 2 Ports
    • 4.3" LCD with resistive touch1
    • Resistive touch controller
    • Micro SD Slot
    • Audio codec, In/Out Jack
    • 8Bit CSI Camera Port
    • Serial console on USB Port
    • CAN PHY - 1 Port
    • UART Header
    • GPIO Header
    • JTAG Header2
    • RTC Coin cell
    • Boot mode switch
    • ON/OFF, Reset Switch

  • Expansion Headers:

    • UART, CAN2, SPI

  • Power Supply:

    • 5V @ 1A DC Input

  • Temperature Supported:

    • 0°C to +60°C

  • OS Support:

    • Linux 4.1.15

  • Form Factor:

    • 100mm X 72mm

  • REACH & RoHS Compliant

Note1: 4.3" Display kit is optional feature.

Note2: JTAG is multiplexed with Audio. By default audio is supported.

Highlights

  • Dual on-board 10/100 Ethernet
  • Power efficient Cortex-A7 up to 900MHz
  • Advanced hardware enabled security
  • PMIC with DVFS support
  • Ultra compact form size 100mm x 72mm
  • 10+ years, long term support
