i.MX6 Qseven Development Platform

Description

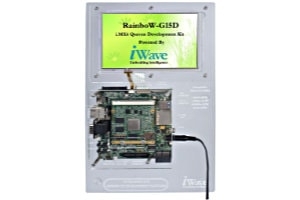

The i.MX6 Qseven Development Board incorporates Qseven compatible i.MX6x SOM which is based on Freescale's iMX6 Series multimedia focused processor and Generic Qseven compatible Development Board. This platform can be used for quick prototyping of any high end applications in verticals like Automotive, Industrial & Medical. Being a nano ITX form factor with 120mmx120mm size, the board is highly packed with all necessary onboard connectors to validate complete i.MX6 CPU features.

Product Specifications
  • CPU:
    • i.MX 6 QuadPlus/DualPlus/Quad/Dual/Dual Lite/Solo CPU
    • ARM®Cortex™-A9 core @1GHz / 800MHz

  • RAM:
    • 1GB DDR3 for Q/D/DL Dev Kit (Expandable up to 4GB*)
    • 512MB DDR3 for Solo Dev Kit (Expandable up to 2GB*)

  • Storage:
    • 2MB SPI Flash (Expandable*)
    • MicroSD
    • 4GB eMMC Flash (Expandable*)
    • Standard SD/MMC or WiFi(WYSAAVDX7) -1 Port*
    • SATA 3.0 - 1 Port**

  • Communication Interfaces:
    • USB 2.0 Host - 2 Ports
    • Gigabit Ethernet - 1 Port
    • USB 2.0 OTG - 1 Port
    • USB Debug Port (Serial to USB conversion)
    • UART - 2 Ports
    • 4 Wire Resistive Touch Connector*
    • CAN - 2 Ports
    • PCIe x 1 Slot
    • Mini PCIe Slot*

      • PCIe Interface
      • USB Host Interface
      • SIM Interface
      • SMB Interface

  • Sensors:
    • 3-Axis Accelerometer
    • Digital e-Compass
    • Ambient Light Sensor
    • Altimeter/Barometer

  • Audio and Video:
    • AC’97 codec- Audio IN/OUT Jacks
    • TV-IN RCA Jack (NTSC/PAL Input)*
    • Parallel Camera ZIF Connector- CSI1 (8Bit)
    • MIPI Camera Connector
    • LVDS1 - 7" 800x480 Display with Capacitive TP
    • Backlight PWM Control
    • HDMI v1.4 - Port
    • LVDS 2 Connector

  • On-Board Headers:
    • 10 Pin JTAG Header*
    • SPI Header
    • 4x4 Keypad Interface Header
    • RTC Coin cell Holder

  • 120 Pin Expansion Connector Interface:
    • 24bpp RGB LCDIF
    • ESAI
    • MIPI-DSI
    • MIPI-CSI
    • CSI2 (8 Bit)
    • Memory Interface (Address/Data Muxed)
    • MLB (Supported only in Automotive CPU)

  • Operating Temperature: 0 to 50oC

  • Power Input: 12V @2A DC Input

  • Form Factor: Nano ITX 120mmx120mm

  • OS Support:
    • Linux 4.1.15
    • Android 5.0.0 Lollipop
    • REL1.5Windows Embedded Compact7

  • Reach RoHS Compliant

* Optional features are not supported by default

** Support available only for i.MX6 Quad and Dual SOMs

Note: For exact orderable part number and its assoiciated deliverables, please refer to the Deliverables section of this page.

Highlights

  • Ideal for Quick Proof of concept (POC) development.
  • Shortens 60%  of the new product development life cycle
  • Quick customization services in a very shorter period
  • Wide range of BSP support available
