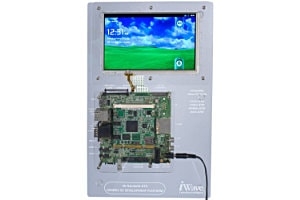

i.MX51 Qseven Development Kit

Description

4 Weeks From PO

The Development Platform incorporates Q7 compatible i.MX51 SOM which is based on Freescale’s i.MX51 Series 800MHz multimedia focused processor and Generic Qseven compatible Development Board. This platform can be used for quick prototyping of any high end applications in verticals like Automotive, Industrial & Medical. Being a nano ITX form factor with 120mmx120mm size, the board is highly packed with all necessary onboard connectors to validate complete i.MX51 CPU features.

Product Specifications
  • CPU: i.MX51 CPU @ 800 MHz
  • Storage:

    • 128MB DDR2, Expandable up to 512MB
    • 128MB NAND Flash, Expandable up to 2 GB
    • Micro SD slot
    • Standard SD slot - 1 Port

  • OpenGL ES 2.0 and OpenVG 1.1 hardware accelerators
  • USB 2.0 Host x 3 ports
  • USB 2.0 device - 1 Port
  • 10/100 Mbps Ethernet - 1 Port
  • 7" LCD (800x480)
  • 4 Wire Resistive Touch screen
  • Audio IN/OUT Jacks (optional)
  • CAN-1 Port (CAN is standard feature from next release)
  • Mini PCIe (USB interface)- 1 Slot
  • SPI header
  • 3x3 keypad Interface header
  • RS232- 2 Port
  • RTC
  • OS: Linux, Android and Windows Embedded Compact 6
  • Power Input: 12V DC Input
  • Form Factor: Nano ITX form factor
  • Expansion Connector:

    • Up to 30 GPIOs
    • 8bit CSI interface 2 ports
    • SSI, UART, Analog RGB, and Memory Bus

  • Optional Add On Modules:

    • 7” Capacitive Touch Add On Module
    • 24BPP LVDS LCD Add On Module

  • Temprature: 0 to 600C

  • REACH & RoHS Compliant

Highlights

  • Ideal for Quick Proof of concept (POC) development
  • Shortens 60% of the new product development life cycle
  • Suitable for validation of any R1.20 Qseven compatible module
  • Quick customization services in a very shorter period
