Altera Cyclone V SoC Development Platform

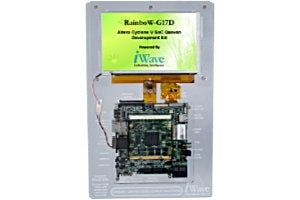

iWave Systems launched Cyclone V SoC Development Platform – iW-RainboW-G17D equipped with Cyclone V  SoC based Qseven SOM and generic Qseven carrier card for the increased system performance requirements. The Dual ARM Cortex A9 core with the FPGA allows greater flexibility for the system designers and helps to lower the system cost and power consumption. The improved logic integration with integrated high speed transceivers and hard memory controllers provides increased bandwidth capacity which is ideal for cost-sensitive high end applications.

Product Specifications
  • Cyclone V SoC Qseven SOM:
    • Cyclone V SOC 5CSXFC6
    • 512MB HPS DDR3 RAM
    • 256MB FPGA DDR3 RAM
    • 10/100/1000 Ethernet PHY
    • 4 Port USB2.0 HUB
    • On SOM µSD Slot*
    • JTAG Header for FPGA
    • OS: Linux 3.10

  • Qseven Carrier Board:
    • Standard SD - 1 Port (Boot & OS Storage)
    • SATA 3.0 - 1 Port#
    • Debug Console through Micro USB
    • Data UART - 1 Port
    • CAN – 1 Port
    • USB 2.0 Host - 3 ports
    • 10/100/1000 Ethernet - 1 Port
    • PCIe x1 Slot
    • AC’97 codec- Audio IN/OUT Jacks#
    • LVDS – 2 Port
      • 7" TFT Display (800x480) with Capacitive Touch
      • 2nd LVDS Connector

    • PWM
    • JTAG Header*
    • Operating Temperature: 0 to 550C
    • Form Factor: Nano-ITX (120mmX120mm)
    • Power Input: 12V
    • REACH & RoHS Compliant

*Optional items are not supported by default

#Only Hardware support is provided by default


  • ARM Cortex A9 Dual core CPU integrated with FPGA with up to 110K LEs
  • Enhanced with integrated transceivers and hard memory controller
  • Readily available FPGA IP cores for integration
  • R2.0 Qseven compatible module
