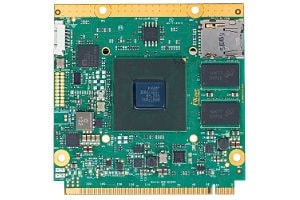

RZ/G1M,G1N Qseven System On Module

Description

iWave's RZ/G1M,G1N based Qseven CPU module integrates high performance ARM Cortex A15 Dual CPU core operating up to 1.5GHz speed. The SOM packed with rich set of features and IO peripherals. It integrates HD hardware codecs, graphic acceleration, on-board PMIC, eMMC flash, DDR3 RAM, Micro SD slot, USB HUB and Gigabit Ethernet PHY. The SOM is ideally suitable for high performance general embedded, industrial and video intensive applications.

Product Specifications
  • CPU:
    • Renesas's RZ/G1M,G1N CPU @ 1.5GHz
    • Dual Core ARM Cortex A15
    • SGX544MP2 Graphic core @ 520MHz2

  • Memory:
    • 1GB DDR3 (Expandable)1
    • 4GB eMMC Flash (Expandable)1
    • 2MB SPI NOR Flash (For Boot code)
    • Micro SD Slot (Optional)

  • Communication:
    • Gigabit Ethernet  PHY - 1 Port
    • 2 Port USB HUB

  • Qseven Edge Interfaces:
    • PCIe - 1 Port2
    • USB3.0 host - 1 Port
    • USB2.0 host - 2 Ports
    • USB2.0 device - 1 Port
    • LVDS Display - 1 Port
    • Gigabit Ethernet - 1 Port
    • SDHC - 1 Port
    • I2S Audio - 1 Port
    • PWM - 2 Ports
    • I2C - 2 Ports, SPI, CAN
    • UART, GPIOs
    • JTAG or UART Console

  • Expansion connector interfaces:
    • 24bpp RGB LCD or 16Bit Camera interface
    • 24Bit Camera or Dual 8Bit Camera interface
    • 8Bit Camera interface
    • UART - 2 Ports
    • Memory bus interface
    • SSI/I2S Audio - 1 Port
    • SPI or UART - 1 Port
    • CAN - 1 Port
    • PWM - 2 Ports & GPIOs

  • Power Supply:
    • 5V @  2A input through Qseven edge

  • Temperature Supported:
    • -40°C to +85°C Industrial

  • OS Support:
    • Linux 3.10.31

  • Form Factor:
    • 70mm X 70mm Qseven 2.0 compatible

  • REACH & RoHS Compliant

  • CE, FCC Certified

Note1: By default 1GB DDR3 and 4GB eMMC only supported. Contact iWave for memory expansion support.
Note2: For RZ/G1N module configuration, Graphic core speed is 312MHz and PCIe support is not available by default.



Highlights

  • Dual Core ARM Cortex-A15 @ 1.5GHz
  • Dual channel HD encode & decode
  • Built in hardware graphic acceleration
  • Three channel video input
  • USB3.0 support
  • Industrial temperature support available
  • Industrial Linux with 10-year support
