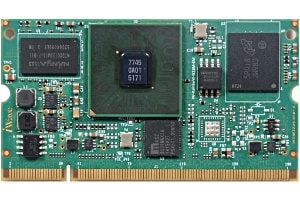

RZ/G1E SODIMM System On Module

Description

iWave's RZ/G1E based SODIMM System On Module integrates power efficient ARM Cortex A7 Dual CPU core operating @1GHz speed. The SOM is packed with rich set of features and IO peripherals. It integrates HD hardware codecs, 3D graphic acceleration, DDR3 RAM, eMMC flash, Micro SD slot, Gigabit and 10/100 Ethernet PHY. The SOM is ideally suitable for low-power cost-effective general embedded, industrial and video intensive applications.

Product Specifications
  • CPU:
    • Renesas’ RZ/G1E CPU @ 1GHz
    • Dual Core ARM Cortex A7
    • SGX540 Graphics core @ 260MHz

  • Memory:
    • 512MB DDR3 (Expandable to 2GB1)
    • 4GB eMMC Flash (Expandable1)
    • 2MB SPI NOR Flash (boot code)
    • Micro SD Slot (optional)

  • Communication:
    • Gigabit Ethernet PHY – 1 Port
    • 10/100 Ethernet PHY – 1 Port2

  • SODIMM Edge Interfaces:
    • Debug UART – 1 Port
    • 10/100/1000 Ethernet – 1 Port
    • 10/100 Ethernet – 1 Port2
    • 24bpp RGB display – 1 Port
    • 8-bit CMOS camera – 1 Port2
    • SD(4-bit) – 1 Port
    • USB2.0 host – 1 Port
    • USB2.0 device – 1 Port
    • DATA UART – up to 6 Ports
    • CAN – 2 Ports
    • I2S audio – 1 Port
    • PWM – 2 Nos
    • I2C – 2 Ports
    • SPI – up to 2 Ports
    • PWM & GPIOs
    • JTAG Port

  • Power Supply:
    • 3.3V @ 2A through SODIMM Edge

  • Temperature support:
    • -40°C to +85°C Industrial

  • OS Support:
    • Linux 3.10.31

  • Form Factor:
    • 67.6mm x 37mm SODIMM

  • REACH & RoHS Compliant
  • CE, FCC Certified

Note1: By default 512MB DDR3 and 4GB eMMC only supported. Contact iWave Systems for memory expansion support.

Note2: 10/100 Ethernet RMII and 8-bit camera interface is multiplexed in the CPU. At a time anyone can be used. By default 8-bit camera interface is supported in the SOM.

Highlights

  • Dual Core ARM Cortex-A7 @ 1GHz
  • Dual channel HD encode & decode
  • Built in SGX540 3D Graphic acceleration
  • Dual On-SOM Ethernet PHY
  • Industrial temperature support available
  • Compact SODIMM form factor
  • Quick time to market
  • Technical & Quick customization support
  • Industrial Linux with 10-year support
