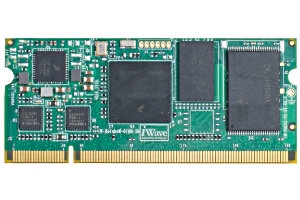

i.MX6ULL SODIMM System On Module

Description

NXP i.MX6ULL based SODIMM SOM module integrates power efficient high performance ARM Cortex A7 CPU core operating up to 900MHz speed with Linux OS.

This cost optimized i.MX6ULL board is ultra-compact in size and integrated with on-board PMIC, Flash, DDR3 and dual Ethernet PHY. The i.MX6ULL SOM is ideally suitable for the cost & power optimized general embedded and industrial applications.

Product Specifications
  • CPU: NXP/Freescale’s i.MX6ULL Y0, Y1, Y2 ARM Cortex A7 up to 900MHz

  • PMIC:
    • NXP/Freescale’s PF3001

  • Memory:
    • 256MB DDR3 (Expandable)
    • 256MB NAND Flash (Expandable)
    • 10/100 Ethernet PHY - 2 Ports
    • Micro SD Slot (Optional1)
    • eMMC Flash (Optional1)
    • QSPI Flash (Optional1)

  • SODIMM Edge Connector Interfaces:
    • Debug UART
    • Data UART - 3 Ports
    • CAN - 2 Ports
    • SD(4-Bit) - 1 Port
    • 10/100 Ethernet - Up to 2 Ports2
    • USB OTG - 2 Ports
    • 24bpp RGB Display Port
    • 8Bit Parallel camera port
    • I2S Audio or JTAG
    • I2C - 1 Port
    • PWM - 2 Ports
    • GPIOs
    • Boot Mode Signals

  •  Power Supply:
    • 3.3V @ 1A through SODIMM edge

  • Temperature Supported:
    • 0°C to +70°C Commercial
    • -40°C to +85°C Industrial

  • OS Support:
    • Linux 4.1.15

  • Form Factor:
    • 67.6mm X 29mm

  • REACH & RoHS Compliant

Note1: At a time either NAND Flash or eMMC & QSPI Flash or micro SD & QSPI flash can be used in the SOM. By default NAND Flash is supported.

Note2: If 2nd Ethernet (ENET2) not used, it can be used as additional 3 UARTs or Keypad 4x4 or RMII Interface.

Highlights

  • Power efficient Cortex-A7 up to 900MHz
  • Advanced hardware enabled security
  • PMIC with DVFS support
  • Industrial temperature support available
