i.MX6 SODIMM System On Module

Description

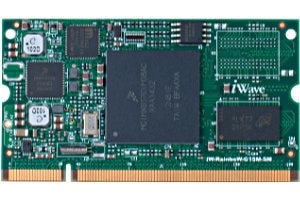

i.MX6 SODIMM Module: iWave's new i.MX6 based SODIMM Module integrates all standard interfaces into a single board with ultra compact yet highly integrated platform that can be utilized across multiple embedded PC, system and industrial designs. It has got all the necessary functions that the embedded world demands.

i.MX6 CPU
The SOM supports various i.MX6 CPU configurations like solo, dual lite, dual and quad. Both commercial and industrial operating temperature SOMs versions are available. With miniature 67.6mm x 37mm sized SODIMM form factor, the module ships with 512MB DDR3 for the Solo CPU version and 1GB DDR3 for other CPU versions.

Product Specifications
  • CPU: NXP/Freescale i.MX6 1GHz/800MHz ARM Cortex A9 Q/D/DL/S

  • PMIC:
    • NXP/Freescale MMPF0100 PMIC

  • Memory:
    • 1GB DDR3 RAM for Q/D/DL (Expandable)
    • 512MB DDR3 RAM for Solo (Expandable)
    • 2MB SPI NOR Flash (Expandable)
    • 4GB eMMC Flash (Expandable)

  • SODIMM Edge Connector Interfaces:
    • PCIe
    • UART - up to 6 ports
    • 10/100/1000Mbps Ethernet through On-SOM Ethernet PHY
    • SATA*
    • USB Host 2.0
    • USB OTG 2.0
    • SD(4bit)
    • I2S Audio
    • LVDS Display
    • 24bpp RGB Display
    • GPIOs
    • PWM - 4 ports
    • 8bit Camera
    • I2C - 2 ports
    • Debug UART
    • JTAG

  • Power Supply:
    • 3.3V , 3.5A input through SODIMM edge

  • Temperature Supported:
    • 0°C to +70°C Commercial
    • -40°C to +85°C Industrial

  • OS Support:
    • Linux 4.1.15
    • Android 5.0.0 Lollipop
    • WEC7#

  • Form Factor:
    • 67.6mm X 37mm SODIMM

  • REACH & RoHS Compliant

Note:

* SATA support not available in i.MX6 DL/S

 # Optional feature

Highlights

  • ARM Cortex A9 @ 1GHz/800MHz Quad/Dual/Dual Lite/Solo core
  • 67.6mm X 37mm SODIMM form factor
  • HD 1080p encode and decode
  • 3D video playback in high definition
  • 2D/3D Hardware Graphics Acceleration
  • Technical and quick customization support
  • 10+ years, long term support
