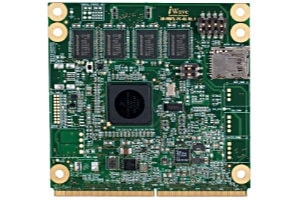

i.MX53 MXM System On Module

Description

iW-RainboW-G11M based on Freescale's i.MX53 is the answer to advancements in multimedia and power efficiency. With chief focus on automotive, industrial and medical sectors, it is tailored to excel in performance. The Freescale family in iWave just got bigger with the addition of i.MX53. With support for numerous essential interfaces and diverse features such as 2D & 3D graphics, dual CAN, dual display, etc, i.MX53 can be comfortably termed as a complete one point solution.

Product Specifications
  • CPU: i.MX536 ARM Cortex A8 upto 1.2GHz

  • PMIC: LTC3589

  • Memory:

    • RAM 512MB DDR2 (Expandable upto 2GB)
    • On board Micro SD slot
    • 4GB eMMC Flash- Expandable upto 32GB*
    • 16MB SPI NOR Flash

  • MXM 3.0 RVS Edge Connector- 314 Pins
    • SATA 2.0 x 1 port
    • 10/100Mbps Ethernet
    • Dual LVDS ports
    • USB 2.0 Host
    • USB 2.0 OTG
    • Audio ports- 3Nos
    • SD/SDIO/MMC ports- 3Nos
    • RGB interface 24bit
    • CAN (2Nos), ESAI (1No), MLB (1No), SPDIF (1No)
    • UART (5Nos), CSI (2Nos), I2C (3Nos), SPI (3Nos)
    • Memory Bus, GPIOs

  • Form Factor: 85mm x 85 mm

  • Power Input: 5V

  • Temperature: -25°C to +85°C

  • OS support: Linux 2.6.37, Windows Embedded Compact 7* and Android 2.3*

  • REACH & RoHS Compliant

Highlights

  • 1GHz Multimedia ARM Cortex A8 CPU module
  • Video 1080p HD Decoding and 720p Encoding, 3D Graphics
  • Success stories: Infotainment, Rear Seat Entertainment, Multimedia Navigation, Digital Signage
  • Dual CAN, Dual LCD and Dual Camera support
  • Linux, Android and WinCE*
  • Customization Services, for "Time-To-Market" Solutions
  • Green Energy Efficient
