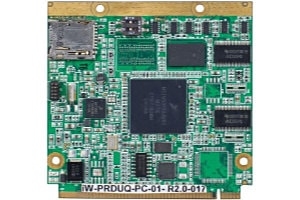

i.MX51 Qseven System On Module

Description

iW-RainboW-G8M-Q7 (Qseven Compatible i.MX51 Module) is based on Freescale's i.MX51 multimedia application processor. The processor features advanced and power-efficient implementation of the ARM Cortex A8 core, which operates at speeds of 800 MHz. This module provides advanced peripheral integration, green energy efficient-power savings, reduced time to market. It can be used for any portable computing applications like Industrial Handheld, High-end PDAs, Advanced HMI, Secure Devices, Automotive Handhelds, Mobile Internet Devices, Wireless Medical Handheld devices, etc.This Qseven Rel.1.20 form factor allows space-saving hardware designs as well as quick and simple integration of the module into the target application.

Product Specifications
  • CPU: Freescale i.MX51 ARM Cortex A8 @ 800 Mhz
  • Storage:
    • 128MB+ DDR2 SDRAM Expandable up to 512MB
    • 128MB+ NAND Flash Expandable up to 2GB
    • Onboard Micro SD Slot

  • 230 Pin Edge Connector Interface:
    • SATA Portx1 (optional)
    • USB 2.0 Hostx4
    • USB 2.0 Device
    • CAN Port
    • LVDS Channel
    • AC'97 Port (optional)
    • 10/100 Ethernet
    • SD/MMC
    • I2C & SPI Bus

  • Optional Expansion Interface:
    • 4 x 4 Keypad Interface
    • CSI Interface
    • UART, GPIOs, I2S
    • Analog TV out (optional)

  • Temperature Supported: Commercial & Industrial*
  • REACH & RoHS Compliant

Highlights

  • Compact, Low power CPU Module, ARM Cortex A8 @ 800 Mhz
  • WinCE, Linux and Android BSP support with Development Platform
  • Compliance to Q7 Standard R1.20 standard (70mm x 70mm)
  • Technical & Customization support, even for the low volume segment
