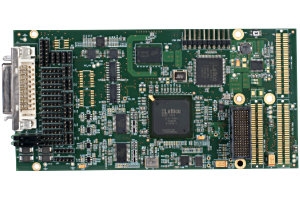

FPGA Radar Interface Card

Description

iWave radar interface card is designed around Lattice FPGA with the PMC/XMC Industry standard form factor.RIC is a high-performance, dual-channel radar interface board that accepts and processes analog and digital radar signals and provides a PCI express interface to applications.

Product Specifications
  • The RICs  interface to analogue or digital radar signals
  • The cards can be configured to handle a wide range of signal types, including differential and single ended with signals up to 30V
  • Dual-channel, dual-trigger radar interface card
  • Equipped with test patterns generators
  • Supports two Analog inputs, and up to eight digital input bits
  • Differential, single-ended or high impedance
  • Time-stamped radar returns
  • -1.5 V to +6.5 V range
  • 50 MHz sampling, 25 MHz bandwidth with programmable digital filtering
  • Eight digital inputs, RS-422 or RS-423
  • Clock input (optional)
  • 75 Ohms termination (single-ended), 120 Ohms (differential), 1k Ohms (high impedance)
  • ESD protection to 6.5KV

Highlights

  • PCI Express host interface & optional PCI interface support
  • 2 Channels for radar interface support
  • XMC Form factor
