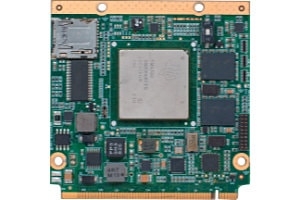

DaVinci DM8168 Qseven SOM

Description

2 weeks

iWave's DM8168 SOM is based on TI's DaVinci DM816x DSP+ARM Cortex-A8 Microprocessor for faster and more robust applications. With extreme system and peripheral integration, the DSP+ARM MPUs provide multiple high-performance interfaces, such as PCIe Gen2, HDMI 1.3, SATA2.0, Gigabit Ethernet and DDR3 interfaces.

The module is compatible to Qseven R1.20 ARM specification and features up to 1.2 GHz CPU, on-board DDR3 RAM, Nand Flash, Micro SD slot and JTAG headers.

Product Specifications
  • CPUTI DM8168 DSP+ARM Cortex-A8 based DaVinci Processor operating up to 1.2 GHz

  • RAM1GB DDR3 SDRAM

  • Storage:

    • 128MB NAND Flash (expandable*)
    • On-board MicroSD slot (default boot)

  • 230 Pin Qseven Edge Connector Interface:
    • SATA 2.0 x2
    • USB 2.0 Host x4
    • USB 2.0 Device x1
    • HDMI v1.3 x 1
    • PCIe2.0 x 2 Lanes
    • Audio McASP Port
    • LVDS Channel, I2S Port
    • Debug UART
    • SD/SDIO
    • I2C Bus, SPI Bus

  • Expansion Connector Interface:
    • Gigabit Ethernet GMII x 1
    • HD Video IN x 2 Ports
    • Analog HD & SD Video OUT
    • Audio McASP x 2 Ports
    • UART x 2 Ports
    • GPIOs

  • Operating Temperature: 0°C to +70°C

  • Form Factor: Qseven R1.20 Compatible(70mmx70mm)

  • Power Input: 5V, 2A

  • Operating Systems: Linux 2.6.37

  • REACH & RoHS Compliant

* Optional items are not supported by default

Highlights

  • DSP+ARM Cortex A8 up to 1.2GHz, offering speed and robust performance
  • SGX530 3D Graphics Engine for rich user interfaces
  • Dual simultaneous 1080p display engine
  • Integrated high bandwidth connectivity peripherals
  • More complex Graphical User Interfaces (GUIs)
  • Compliance to Qseven R1.20 standard (70mm x 70mm)
  • Linux BSP support with Development Platform
