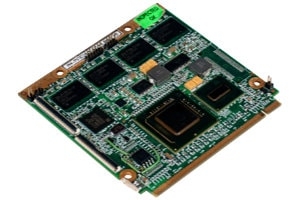

Atom Z5xx Qseven SOM

Description

Atom Qseven Module is Intel Atom powered, low power, high end mobile computing Off-the-shelf COM module based on the Industry latest Qseven form factor. The module is suitable for mobile & battery powered applications and can be easily integrated for any handheld and ultra mobile computing applications. The module provide the rich set of high and low speed interfaces.

Product Specifications
  • On board 1GB DDR2
  • On board Micro SD slot
  • Direct 40 pin ZIF IDE interface for HDD or SSD
  • Qseven Standard 1.11 compliance (form factor 70mm x 70mm)
  • Sub 5W power consumption
  • AMI BIOS
  • Custom boot loader for industrial applications

Highlights

  • Compact, Low power CPU module, Intel Atom Z530/Z510@1.6 GHz / 1.1 GHz
  • OS Support: Windows XPWES2009, Fedora, Ubuntu 8.04
  • Compact (70mm X 70mm), incorporating all flexible SOM architecture
  • Long term support > 5+ Years, Industrial temperature grade
  • Technical & customization support, even for the low volume segment
