Arria 10 SoC / FPGA System On Module

Description

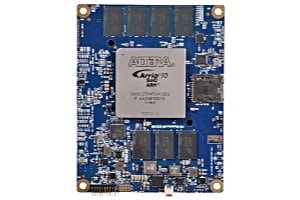

iWave’s Arria 10 SoC System on Module is based on the Arria 10 SX family device with F34 package. The module is equipped with 32-bit DDR4 memory support for HPS with optional ECC and 64-bit DDR4 support for FPGA. All the IOs and high speed transceiver blocks will be available on the SOM board to board connector.

Product Specifications
  • SoC/FPGA:
    •  Intel Arria10 SoC/FPGA
      • Compatible Arria10 SoC Family - SX270, SX320, SX480, SX570, SX660
              With up to 660K Logic Elements, 24 High Speed Transceivers and integrated Dual Core ARM Cortex A9 @ upto 1.5 GHz/Core Hard Processor System (HPS).
    • Compatible Arria10 FPGA Family - GX270, GX320, GX480, GX570, GX660, GX900, GX1150

              With up to 660K Logic Elements and 24 High Speed transceivers

  • Memory:
    • 1GB DDR4 SDRAM (32bit) with ECC for HPS/FPGA (Expandable) ¹, ²
    • MicroSD Connector for HPS booting ¹, ³
    • NAND Flash for HPS booting (Optional) ¹, ³
    • Configuration Flash for FPGA (Optional)
    • DDR4 RAM (64bit) from FPGA (Optional)4

  • Other On-SOM Features:
    • JTAG Header
    • FAN Header
    • FPGA AS Header (Optional)
    • FPGA Configuration Selection Switch (Optional)

  • Board to Board 1 Interfaces:
    • FPGA High Speed Transceivers (upto 17.4Gbps) x 18
    • FPGA IOs & General Purpose Clocks - Bank2A
      • Upto 46 Single Ended IOs
      • One General Purpose Clock Input LVDS Pair/Single Ended
      • Two General Purpose Clock Output LVDS Pairs/Single Ended
    • FPGA IOs & General Purpose Clocks – Bank3A
      • Upto 47 Single Ended IOs
      • Two General Purpose Clock Input LVDS Pairs/Single Ended
      • Two General Purpose Clock Output LVDS Pairs/Single Ended

  • Board to Board 2 Interfaces:
    • From HPS Block: 1, 5
      • Gigabit Ethernet x 1 Port (through On-SOM Gigabit Ethernet PHY)
      • USB OTG x 1 Port (through On-SOM USB ULPI PHY)
      • Debug UART (UART0) x 1 Port
      • Data UART (UART1) x 1 Port (With CTS & RTS)
      • SPI x 1 Port
      • I2C x 1 Port
      • HPS GPIOs
      • HPS Warm Reset
    • From FPGA Block:
      • FPGA High Speed Transceivers (upto 17.4Gbps) x 6
      • FPGA IOs & General Purpose Clocks – Bank3B
        • Upto 24 LVDS IOs
        • Two General Purpose Clock Input LVDS Pairs/Single Ended
        • Two General Purpose Clock Output LVDS Pairs/Single Ended
      • FPGA IOs & General Purpose Clocks – Bank3C
        • Upto 24 LVDS IOs
        • Two General Purpose Clock Input LVDS Pairs/Single Ended
        • Two General Purpose Clock Output LVDS Pairs/Single Ended
      • JTAG Interface

  • Power Supply: 5V
  • Form Factor: 95mm x 75mm
  • REACH & RoHS Compliant


¹ In Arria10 SoC/FPGA SOM, these interfaces can be supported only if Arria10 SoC family devices which supports Hard Processor System (HPS) are used.

² In Arria10 SoC/FPGA SOM, if Arrai10 SoC family device is not used and FPGA family device is used, then also 32bit DDR4 can be supported from FPGA fabric.

³ In Arria10 SoC/FPGA SOM, these interfaces can be supported only if Arria10 SoC family devices are used because these interfaces are supported through Dedicated I/O pins of Hard Processor System (HPS).

4 Supported on SX480/GX480 or higher family devices only.

5 In Arria10 SoC/FPGA SOM, if Arrai10 SoC family device is not used and FPGA family device is used, then these Shared I/O interfaces cannot be used. But the same pins can be used as FPGA Bank2L from FPGA fabric.

Highlights

  • Arria10 SoC & FPGA device compatibility
    • SX270, SX320, SX480, SX570, Sx660
    • Gx270, GX320, GX480, GX570, Gx660, GX900, GX1150
  • 24 high speed transceivers @ 17.4Gbps
  • Up to 76LVDS/152SE FPGA IOs
  • 8LVDS/8SE General purpose clock outputs
  • 7LVDS/7SE General purpose clock inputs
  • 64 - Bit DDR4 support for FPGA
  • Dual 240 Pin Board to Board Connector
  • Variable IO voltage support
  • Industrial Grade operation
