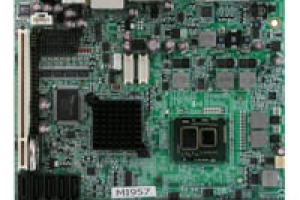

MI957

Description

FEATURES:

  • Onboard Intel® Core™i7-610E / i3-330E Processor, up to 2.53GHz
  • Two DDR3 DIMM, Max. 8GB memory, supports ECC
  • Supports CRT, DVI-D, HDMI, LVDS and Display port
  • Intel® 82577LM Gigabit PHY
  •  4x SATA II (RAID 0, 1), 12x USB 2.0, 4x COM
  • 1x Mini PCI-E, 1x PCI, 1xPCI-E(x1)
Product Specifications



CPU On Board
Inte® Core™ i7-610E / i3-330E (with ECC support)


Chipset
Intel® QM57 Express Chipset

BIOS
AMI BIOS, ACPI supported

System Memory
Two DDR3 DIMM sockets, Max. 8GB
DDR3 800/1066, w/ ECC function

Integrated VGA
Inte® Core™ i7-610E / i3-330E built-in graphics
Supports CRT, DVI-D, HDMI, Display Port
Supports 18/24-bit single or dual LVDS display

LAN
Onboard Gigabit PHY (Intel 82577LM)

Audio
Intel® QM57 built-in high definition audio controller with
Realtek codec ALC888 for 5.1 CH audio

LPC I/O
Fintek F81865-I I/O controller supports 4x COM & HW monitoring

Serial Ports
3x RS-232, 1x RS-232/422/485



Serial ATA
Intel® QM57 built-in SATA II (3.0Gb/sec)
Supports 4 ports on board

USB
Intel® QM57 built-in USB 2.0 controller
Supports 12 ports (8 ports, 4 via pin header)


Digtial I/O
Supports 4 in, 4out

Watchdog Timer
256 segmaents, 0, 1, 2...255 sec/min

Power Connector
DC-in (+12V)

Expansion Slot

PCI, PCI-E(x1) & Mini PCI-E socket


Edge Connectors
DC in (+12V), VGA CRT, DVI-D, HDMI, Display Port,
1x RJ45, 8x USB, 3x1 Audio jacks

Onboard Connectors/Headers
Digital I/O, COM1~COM4, 4x USB, DF13 for LVDS,
4x SATA
