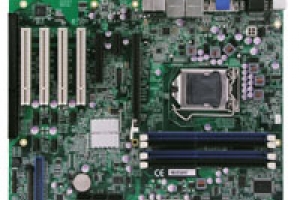

MB950

Description

FEATURES:

    * Supports Core™2 i7 / i5 / i3, Pentium G6950 processors
    * 4x DDR3 DIMM, Max. 16GB
    * 1x Gigabit MAC + PHY and PCI-E Gigabit LAN
    * Supports dual independent display - DVI/VGA
    * 6x SATA II, 14x USB 2.0, 4x COM
    * 1x PCI-E(x16), 1x PCI-E(x4), 1x PCI-E(x1), 4x PCI, 1x ISA

Product Specifications

CPU Socket
LGA1156


CPU
Intel® Core™2 i7 / i5 / i3 and Pentium® G6950 processors,
2.8GHz to 3.46GHz

Chipset
Intel® Q57 PCH Chipse

BIOS
Award BIOS, ACPI supported

System Memory
Four DDR3 sockets
Up to 16GB 800/1066MHz SDRAM, w/o ECC


Integrated VGA
Q57 chipset built-in
Supports VGA CRT and DVI-D interface


LAN
Intel 82578DM Gigabit MAC + PHY
Intel 82583V PCI Express Gigabit LAN
RJ-45 on board

Audio
Built-in HD audio with Realtek ALC888 High codec
7.1 channel output


LPC I/O

W83627DHG chipset supports COM1 (RS232), COM2 (RS232/422/485), Hardware Monitor

Secondary I/O
Fintek F81216; for COM3 / COM4 (RS232)

Serial Ports

Three RS-232 and one RS-232/422/485 COM ports

Serial ATA Interface
6x SATA II ports, 3Gb/s

PATA Interface
JMicron JM368 (PCI-E to PATA) for one PATA channel supporting IDE and CF (vertical CF socket)

USB
14 USB 2.0 ports (4 on board, 10 via pin header)

Watchdog Timer
Generates system reset; 256 levels

Hardware Monitoring
Monitors system/CPU temperature and voltage status

Digital I/O
4 in and 4 out

Keyboard/Mouse

PS/2 keyboard/mouse connector

Expansion Slots

1x PCI-E(x16), 1x PCI-E(x4), 1x PCI-E(x1), 4x PCI, 1x ISA
