IB946

Description

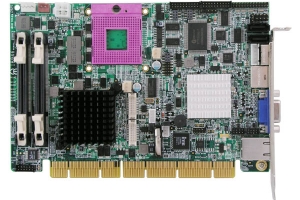

Socket P Half-Size PISA CPU Card w/ Intel® GM45 Express chipset

Product Specifications

CPU Socket
Socket P

CPU
Supports Intel® Core™2 Quad /Core™2 Duo /Celeron® processors,
Up to 3.06GHz

CPU Front Side Bus ( FSB )
667/800/1066MHz

Chipset
Intel® GM45 chipset
ICH9M

BIOS
Phoenix Award BIOS, ACPI supported

System Memory
Two DDR2 SO-DIMM socket supports up to 4GB


Integrated VGA
Intel® GM45 integrated GMA4500MHD
Supports DVMT 5.0; Max. Shared memory 1GB

LVDS
Supports 24-bit dual channel LVDS

Primary LAN
Intel® 82567LM Gigabit LAN
controller
RJ-45 connector on bracket

Audio
ICH9M Built-in HD audio w/ Realtek ALC662 codec for 5.1CH (Line-out, Line-in, Mic.)

Multi I/O
ICH9M, Winbond W83627EHG + Fintek F81216AD
1x LPT, 1x IrDA, 1x KB, 1x Mouse,
2x SATA II (3.0Gb/sec.)

IDE Interface
PCI-E to CF socket


Serial Ports
3x RS232, 1x RS-232/422/485

Serial ATA
ICH9M built-in SATA II controller,
supports 2 ports

USB (2.0)
ICH9M built-in USB 2.0 host controller,
Support 5 ports

IrDA
Pin header

Keyboard and Mouse Connector
PS/2 type

Watchdog Timer
Generates system reset; 256 levels

Hardware Monitoring
Built in W83627EHG; monitors system/CPU
temperature and voltage status

Digital I/O
4 in / 4 out

PCI to ISA
ITE8888G FTBGA (no ISA master)

Expansion Slot
Mini PCI-E at solder side

Edge Connectors (on bracket)
PS/2 for keyboard/mouse, USB, VGA CRT, RJ-45
4x USB, COM1

Onboard Connectors/Headers
CF socket, parallel port, COM1~4, 4xUSB, LVDS, audio,
IrDA,
2x SATA ll, Digital I/O

Form Factor
Half Size CPU Card

Dimensions
186mm x 129mm (7.32“ x 5“)

Power Consumption
TBC
