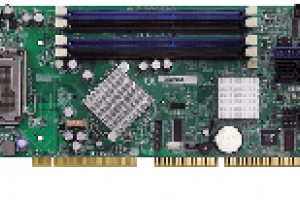

IB945

Description
  • Supports Intel® Core™2 Quad / Core™2 Duo / Pentium® Dual-Core/ Celeron® processors, 800MHz/1066MHz/1333MHz FSB
  • 4x DDR3 DIMM, Max. 8GB
  • 2x PCI-E Gigabit LAN
  • Integrated graphics device, GMA4500
  • With DVI and CRT support
  • 6x SATA II, 2x COM, 6x USB 2.0, Watchdog timer
  • Digital I/O, ISA High Drive, optional Mini PCI-E socket
Product Specifications

CPU Socket
LGA775

CPU
Intel® Core™2 Duo (E8000 and E7000)
Intel®Core™2 Quad (Q9000)
Intel® Core™2 Extreme (QX9000)
Up to 3.2GHz speed and up to 12MB L2 cache

CPU Front Side Bus ( FSB )
800MHz / 1066MHz / 1333MHz

Chipset
Intel® Q45 Chipset
ICH10DO

BIOS
Award BIOS, ACPI supported

System Memory
Four DDRIII sockets
Up to 8GB 800/1066MHz SDRAM, w/o ECC

Integrated VGA
Q45 chipset built-in (GMA4500)
Supports VGA CRT interface
Chrontel CH7307C for DVI interface

LAN
Intel 82567 PCI-EGigabit Ethernet PHY
Intel 82574L PCI Express Gigabit LAN
RJ-45 on board

Audio
ALC 888 High Definition Audio Codec
7.1 channel output

LPC I/O

W83627DHG chipset supports COM1 (RS232), COM2 (RS232/422/485), Hardware Monitor

Serial ATA Interface
6x SATA II ports, 3Gb/s

Serial Ports
One RS-232 and one RS-232/422/485 COM ports

Parallel IDE
JMicron JM368 (PCI-e to PATA) x1 for 1 PATA channel

USB
6 USB 2.0 ports (6 via pin header)

Watchdog Timer
Generates system reset; 256 levels

Hardware Monitoring
Monitors system/CPU temperature and voltage status

Keyboard/Mouse
PS/2 keyboard/mouse connector

PCI to ISA Bridge
ITE IT8888G x1 for high drive ISA bus

Edge Connectors
PS/2 for keyboard/mouse, VGA, RJ45 x2

Onboard Headers/Connectors
SATA x6, IDE, DVI, FDD, LPT, COM1/2, CPU fan, system fan, USB x6

Digital I/O
4 in and 4 out

Watchdog Timer
Generates system reset; 256 levels

Expansion Slot
Mini PCI-E socket

Form Factor
Full Size CPU Card

Dimensions
338mm x 122mm

Power Consumption
Intel® Core™2 Quad 9550 2.83GHz w/4 x 2GB DDR3-1333
+5V: 7.93A
+12V: 1.16A
