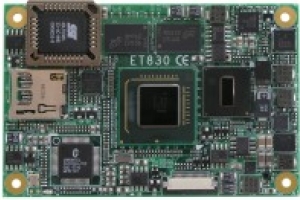

ET830

Description
  • Intel® Atom™ Processor Z530 series,
    533MHz FSB, Hyper-Threading Technology
  • 512MB DDR2 memory on board
  • MicroSD slot & 2GB NAND Flash SSD on board
  • Supports dual display, VGA/LVDS via baseboard
  • Supports HDTV/HD audio via baseboard
  • 2x Gigabit LAN, 1x SATA II, 1x LPT, 6x USB 2.0, 4x COM via baseboard
Product Specifications

CPU
Intel® Atom™ Z530
Ultra Low Voltage, 2.7Watts
C0-C6 low power states
Hyper- Threading Technology support

CPU Speed
1.6GHz

Chipset
Intel® SCH US15W chipset
1249-pin BGA

Processor Side Bus Frequency
533 MHz

L2 Cache
512KB On-die L2 Cache

BIOS
Award BIOS, ACPI supported

System Memory
512MB DDR2 memory on board

VGA
Intel® SCH US15W chipset integrated GM500
18-bit/24-bit single channel LVDS on baseboard (IP510)
Supports dual display, VGA/LVDS via baseboard

LAN
2x RJ-45 on baseboard (IP510)

Audio
Intel® SCH US15W chipset built-in controller
with Realtek ALC662 codec on baseboard (IP510)

LPC I/O
All I/O interface on baseboard (IP510)
1x LPT, 1x KB, 1x Mouse, 1x SATA II
1x RS232/422/485, 3x RS232 serial ports

Digital I/O
4 in / 4 out (on IP510 baseboard)

USB
Supports 6x USB 2.0 ports (on IP510 baseboard)

Keyboard and Mouse Connector
PS/2 type (on IP510 baseboard)

Expansion Slots
SDIO socket on board
1x PCI, 1x Mini PCI-E(x1) (on IP510 baseboard)

Edge Connectors (on IP510 baseboard)
PS/2 KB/Mouse, CRT VGA, COM, 2x RJ45,
USB1/2, Audio

Power Connector
ATX power (on IP510 baseboard)

Others
2GB NAND Flash SSD on board

Form Factor

Nano ETX Express

Dimensions
84mm x 55mm (3.3" x 2.2")

 Power Consumption
Intel® Atom™ Z530 1.6GHz
w/ 512MB DDR2-533
+3.3V: 0.81A
+5V: 0.41A
+12V: 0.85A
