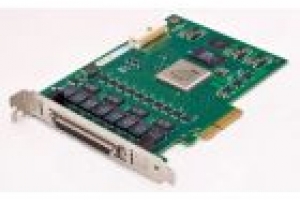

RPCIE-1553

Description

Multi-function Interfaces
RPCIE-1553 multi-function interfaces are easily configured to operate with simultaneous Bus Controller, 31 Remote Terminals and Bus Monitor functionality.

Single-function Interfaces
Signal-function RPCIE-1553 interfaces have all the features and functionality of the multi-function versions, but only one major operational mode is enabled at a time. Each interface can emulate a Bus Controller, or a Bus Monitor, or up to 31 remote terminals.

Software
GE Intelligent Platforms provides our advanced 1553 API in source code, along with support for Windows 7, Vista, XP, 2000, NT, VxWorks, Linux, Integrity, LynxOS, QNX and other operating systems. To access 1553 functionality without software development, BusTools/1553, GE Intelligent Platforms MIL-STD-1553 bus analysis, simulation and data logging/monitoring solution is available.

Product Specifications
  • 1, 2 or 4 dual-redundant MIL-STD-1553A/B Notice II channels
  • Native 4 lane PCI Express interface (no bridge)
  • Simultaneous Bus Controller, 31 Remote Terminals and Bus Monitor
  • High-level API for Windows 7, Vista, XP, 2000, NT,  VxWorks, Linux, Integrity, LynxOS, QNX and Solaris included
  • Multi-function and single-function versions
  • Optional IRIG-B receiver/generator
  • 45-bit, microsecond time-tagging
  • Complete message programmability
  • Flexible message status/interrupt generation
  • I/O triggering and error injection/detection
  • Transition cabling to 1553 cable jacks included
  • Optional conformal coating
  • Supportable throughout program lifetime with Product Lifetime Management (PLM) program
