RAR-PCIE

Description

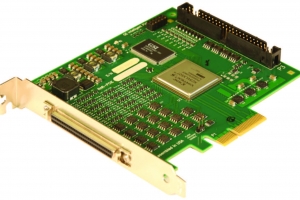

RAR-PCIE native 4 lane PCI Express board provides complete, integrated databus functionality for ARINC 429, ARINC 575 and selected 2-wire, 32-bit protocols. The RAR-PCIE board is available in a wide array of Rx and Tx channels and the easy to use Windows-based Bustools v.7  bus analyzer software. An advanced, high-level API for Windows and Linux operating systems permits easy transition to the high-performance RAR-PCIE.

The RAR-PCIE supports maximum data throughput on all channels while providing onboard message scheduling, label filtering, multiple buffering options, time-tagging, error detection and avionics-level I/O discretes. Configurations with support for ARINC 717, ARINC 573, and IRIG-B Receiver (AM or DC/TTL) and Generator (DC/TTL) support are optional. The IRIG-B DC level signal can be utilized to synchronize time stamps across multiple boards. Several RAR-PCIE configurations offer combinations of ARINC 429 channels along with ARINC 717/573 Dual-Mode functionality. Dual-Mode functionality programmatically supports either HBP (Harvard Bi-Phase) or BPRZ (Bi-Polar Return to Zero) across a wide range of Bit Rate/ Subframe combinations.

Product Specifications
  • Easy-to-use BusTools ARINC Windows-based GUI Bus Analyzer available
  • High performance, high density interface with large buffers
  • Native 4 lane PCI Express interface (no bridge)
  • Up to 16 Rx and 16 Tx ARINC 429 channels
  • Support for 2-wire ARINC 573, 575 and 717
  • Advanced, high-level software API included for Windows Vista, XP, 2000, NT, Linux®
  • Supports maximum data throughput on all channels simultaneously
  • Independent, software-programmable bit rates for all channels
  • Error injection/detection
  • On-board temperature and voltage monitoring
  • IRIG-B Receiver/Generator optional
