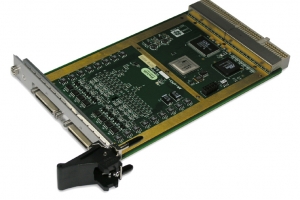

RAR-cPCI

Description

Available in a range of configurations to match your needs, the 32 channel RAR-cPCI provides complete, integrated databus functionality for ARINC 429, ARINC 575 and selected 2-wire 32-bit protocols in the CompactPCI form factor. It supports maximum data throughput on all channels while providing on-board message scheduling, label filtering, multiple buffering options, time-tagging, error detection and avionics-level I/O discretes, with support for either 33 MHz or 66 MHz 32 bit cPCI interfaces. Configurations with support for ARINC 717, ARINC 573 and IRIG-B Receiver (AM or DC/TTL) and Generator (DC/TTL) support are optional. GE Intelligent Platforms' software tools and solutions significantly reduce the time required to integrate various avionics protocols into your application. Included with the RAR-cPCI is our flexible, high-level API (Application Programming Interface)support for Windows XP, 2000, NT, Linux, and Visual Basic. This powerful API supports multiple cards, and is compatible with GE Intelligent Platforms’ API support on PCI, PC/AT and PC/104 platforms. Also, BusTools/ARINC, our flexible Windows-based GUI Bus Analyzer, LabVIEW and LabVIEW Real-Time support is optionally available.

Product Specifications
  • 3U CompactPCI form factor
  • Supports 66 MHz, 32-bit PCI operation
  • Error injection/detection
  • Support for ARINC 573 and 717
  • IRIG-B Receiver/Generator optional
  • Supports maximum data throughout on all channels simultaneously
  • Independent, software-programmable bit rates for all channels
  • 16 bi-directional discretes that handle avionics-level voltages
  • Advanced, high-level software API included for Windows® XP, 2000, NT, Linux® Kernel,VxWorks®, and Visual Basic
  • Easy to use BusTools/ARINC™ Windows®-based GUI bus analyzer available
  • Up to 16 Rx and 16 Tx ARINC 429 Channels
  • High performance, high density interface with large buffers
  • Front panel OR backplane I/O configurations
  • Support for LabVIEW and LabVIEW Real-Time
  • PXI Compatible
