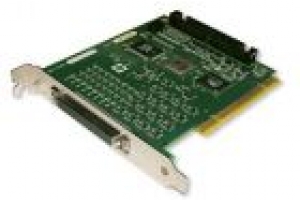

RCEI-530

Description

Available in a range of configurations to match your needs, the 32 channel RCEI-530 provides complete, integrated databus functionality for ARINC 429, ARINC 575 and selected 2-wire, 32-bit protocols. The RCEI-530 supports maximum data throughput on all channels while providing onboard message scheduling, label filtering, multiple buffering options, time-tagging, error detection and avionics-level I/O discretes, with support for either 33 MHz or 66 MHz PCI interfaces. Configurations with support for ARINC 717, ARINC 573, and IRIG-B Receiver (AM or /DC/TTL)and Generator (DC/TTL) support are optional. The IRIG-B DC level signal can be utilized to synchronize time stamps across multiple boards. Several RCEI-530 configurations offer combinations of ARINC 429 channels along with ARINC 717/573 Dual-Mode functionality. Dual-Mode functionality programmatically supports either HBP (Harvard Bi-Phase) or BPRZ (Bi-Polar Return to Zero) across a very wide range of Bit Rate/Subframe combinations. Also, BusTools/ARINC, our flexible, Windows-based GUI Bus Analyzer, and LabVIEW support is optionally available.

Product Specifications
  • PCI-X compatible
  • Support for 2-wire ARINC 573, 575, and 717
  • 16 input and 16 output discretes that handle avionics–level voltages
  • Supports 66MHz, 32-bit PCI operation
  • IRIG-B Receiver/Generator optional
  • Error injection/detection
  • Independent, software-programmable bit rates for all channels
  • Advanced, high-level software API included for Windows XP, 2000, NT, Linux Kernal, VxWorks, and Visual Basic
  • Supports maximum data throughput on all channels simultaneously
  • Easy-to-use BusTools/ARINC Windows-based GUI Bus Analyzer available
  • High performance, high density interface with large buffers
  • Up to 16 Rx to 16 Tx ARINC 429 channels
  • Support for Labview
