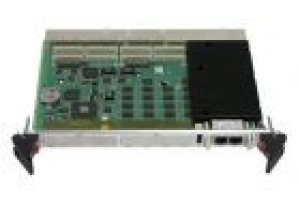

CT-12

Description

CT12 6U high performance CompactPCI single board computer is based on the latest 2.53 GHz Intel Core i7 processor technology and features up to 8 GB of DDR3 memory. It is designed to bring high throughput, rugged computing and leading edge performance/watt to a broad range of applications including telecommunications, industrial control, test equipment, server blades, supervisor and monitoring systems, security and surveillance.

The CT12 is designed to deliver high performance computing with low power consumption and low heat dissipation. It is highly integrated, incorporating Northbridge components – memory controller, PCI Express™ for external graphics, integrated graphics and the DMI connector – which make it both faster and more compact. Its clock speed, dual core architecture and new performance features allow applications to be executed more quickly – or allow more tasks to be executed concurrently. Using TurboBoost technology, the CT12 can allow some applications to execute even faster. The CT12 is designed to allow upgrade to faster Intel Core processors as these become available.

Product Specifications
  • PICMG compliant, single slot 6U CompactPCI SBC
  • Up to 8 GB DDR3 SDRAM with ECC in main memory (soldered components)
  • BIOS backup Flash
  • User EEPROM
  • Optional onboard SATA HDD
  • Optional one or two PMC or XMC sites
