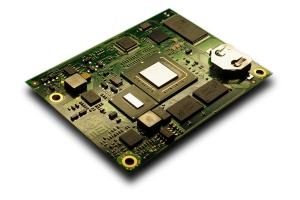

Mirach Intel Atom Module

Description

The Intel® Atom™ processor Z5xx series delivers the benefits of Intel® architecture for small form factor, thermally constrained and fanless embedded applications.

Implemented in 45nm technology, these power-optimized processors provide robust performanceper-watt in an ultra-small 13x14 mm package. Featuring embedded lifecycle support, the Intel Atom processors are ideal for many embedded market segments such as in-vehicle infotainment, medical, interactive client (kiosks, point-of-sale terminals), gaming and industrial control. They remain software compatible with previous 32-bit Intel® architecture and complementary silicon.

These single-core processors are validated with the Intel® System Controller Hub US15W, which integrates a graphics memory controller hub, and I/O controller hub into one small 22x22 mm package. This new, two-chip platform provides more than 80% reduction in total footprint over the previous-generation three-chip solution, based on the Intel® Celeron® M processor Ultra Low Voltage 423 with Mobile Intel® 945GME Express chipset.

Product Specifications

Key benefits

  • Competitive prices with ARM11 and CORTEX Cores
  • Scalable solution (from 800 Mhz to 1.86GHz)
  • Low power consumptions (from 1 to 5 Watt)
  • Smaller Modular Solution (80x60mm)
  • Best performance/Watt ratio
  • Boot from removable devices
  • Configurable BIOS ad HW
  • X86 architecture compliant solution
  • Windows Xp, Xp embedded, Vista and Linux fully supported



Key features

  • Intel® Atom™ Processor family
  • Up to 1GB DDR2 Ram
  • Intel® Graphics Media Accelerator 500: 2D, 3D and advanced 3D graphics support
  • Dual Head Video (LVDS up to 1280x1024 and SDVO up to 1080i)
  • H264 hardware codec up to 1080i@30fps,
  • High Profile, L4.1 (MPEG2-4,VC1, and WMV9 supported)
  • HDA Audio up to 4 audio streams (up to 16 channels each), 32-bit sample depth, and sample rates to 192 KHz
  • 8 USB 2.0 Host (1 client configurable)
  • Interfaces: LPC, IDE, PCI-Ex 1x, GPIO, UART, IRDA
  • Operating temperature: 0º...+60ºC; -40º...+85ºC
  •

Click Here For DataSheet
